Spindle Shafts and Sleeves

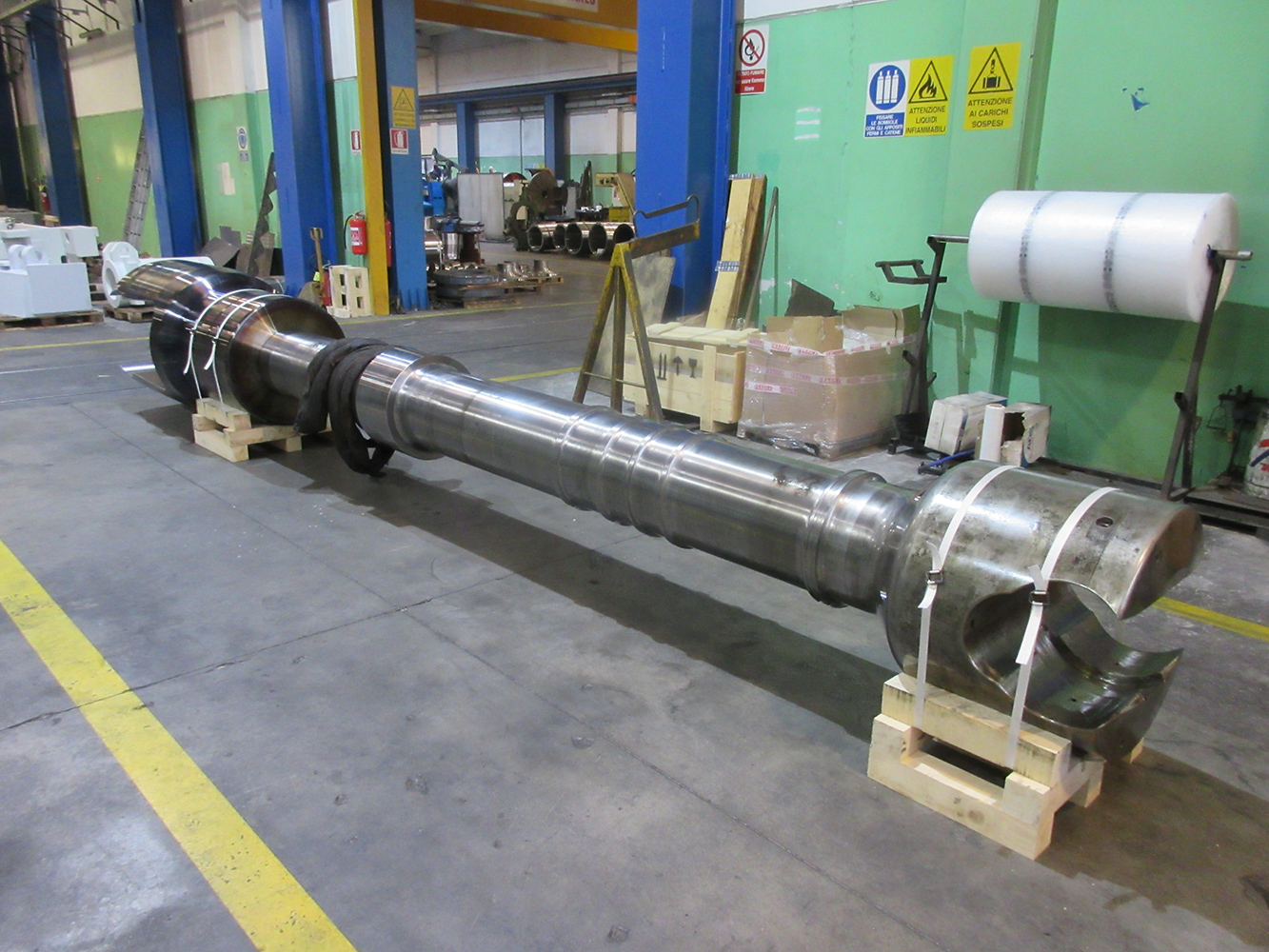

Spindle Shaft 1
Spindle Shaft 1
Spindle Shaft 1

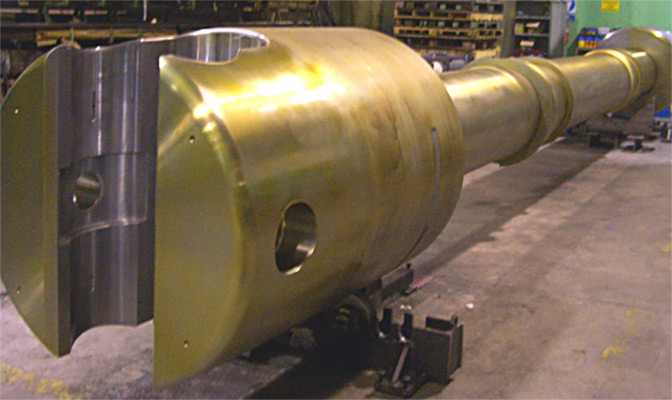

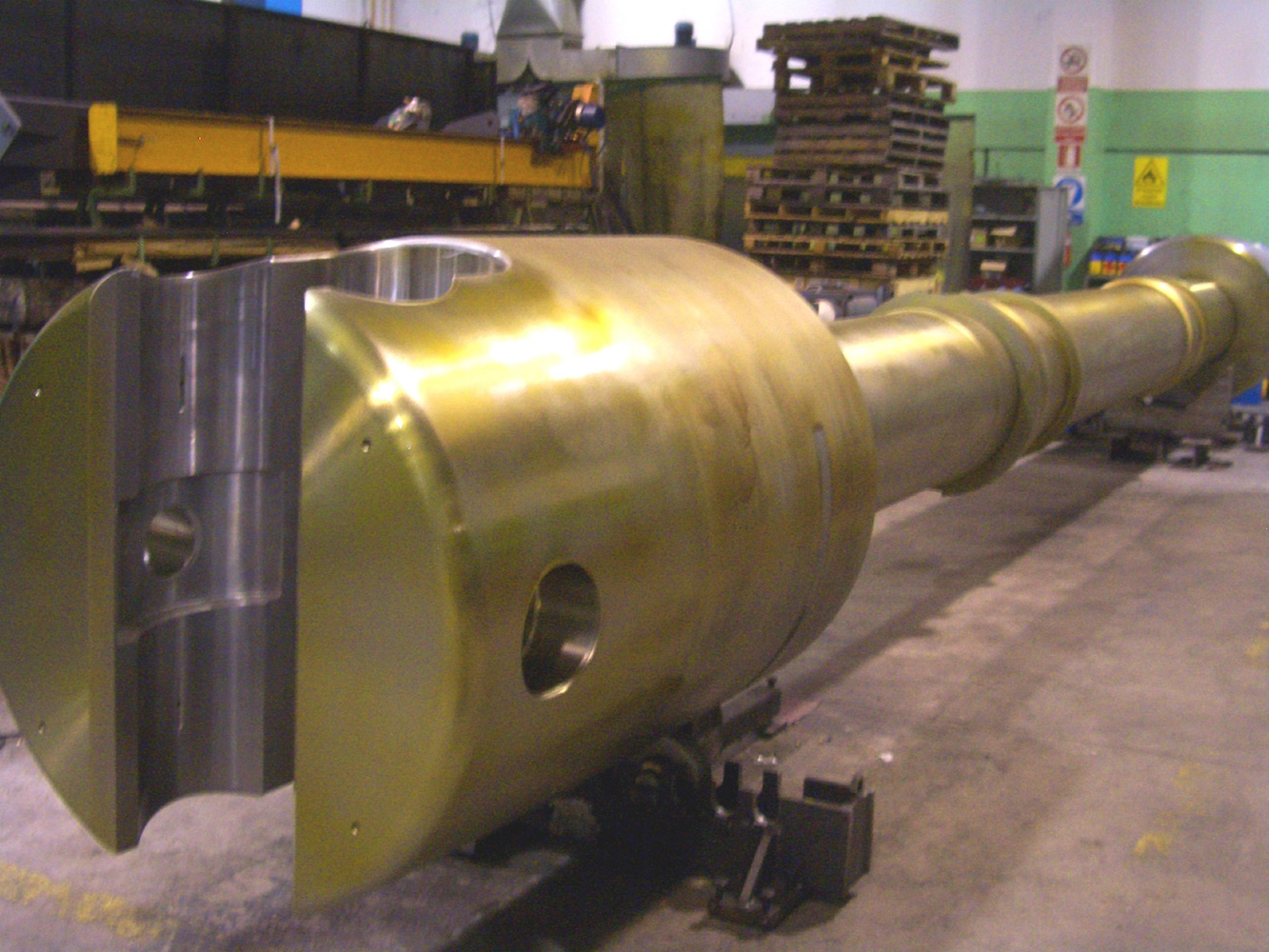

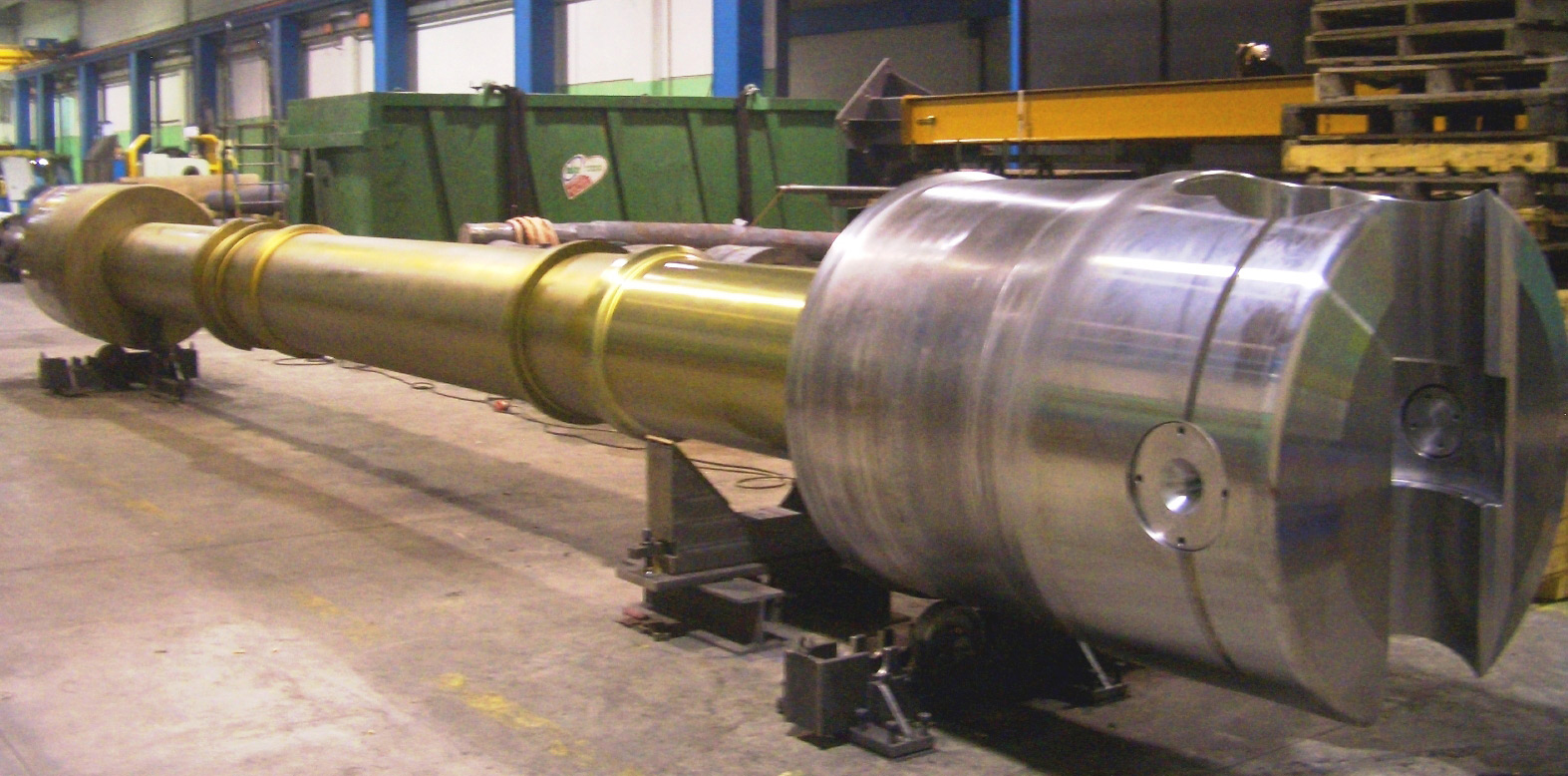

Spindle shaft with right and left rotating heads, composed of a spindle shaft and two hot assembled sleeves.
Material: Forged steel.
Dimensions: Length 37’, Dia. 2'.
For a milling line in Luxembourg.
Spindle Shaft 2
Spindle Shaft 2
Spindle Shaft 2
Spindle Shaft 2

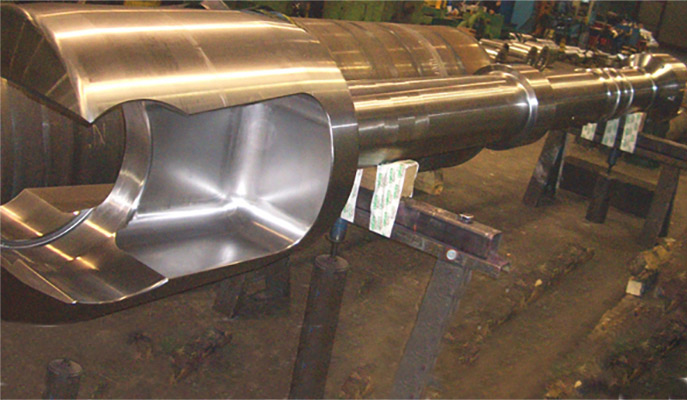

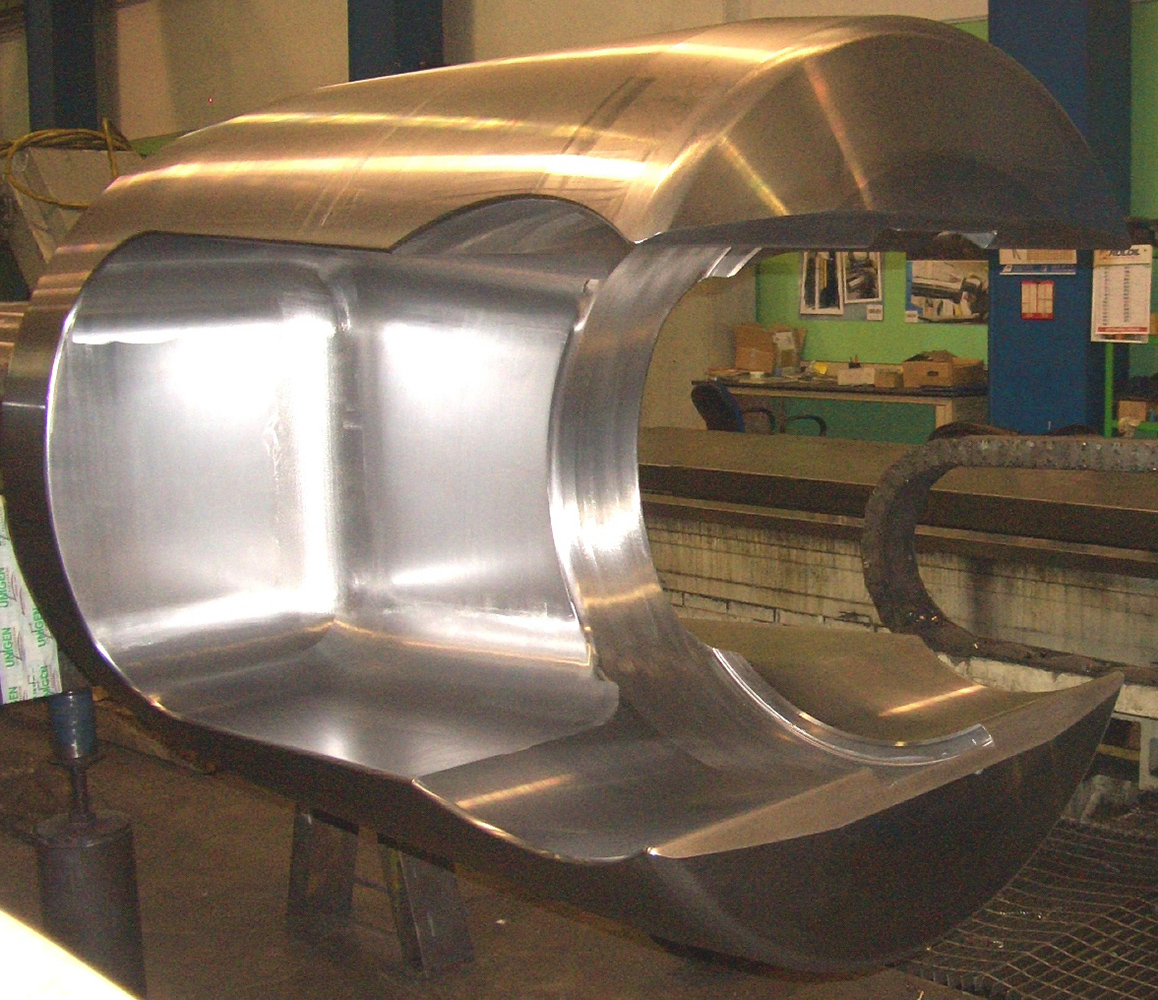

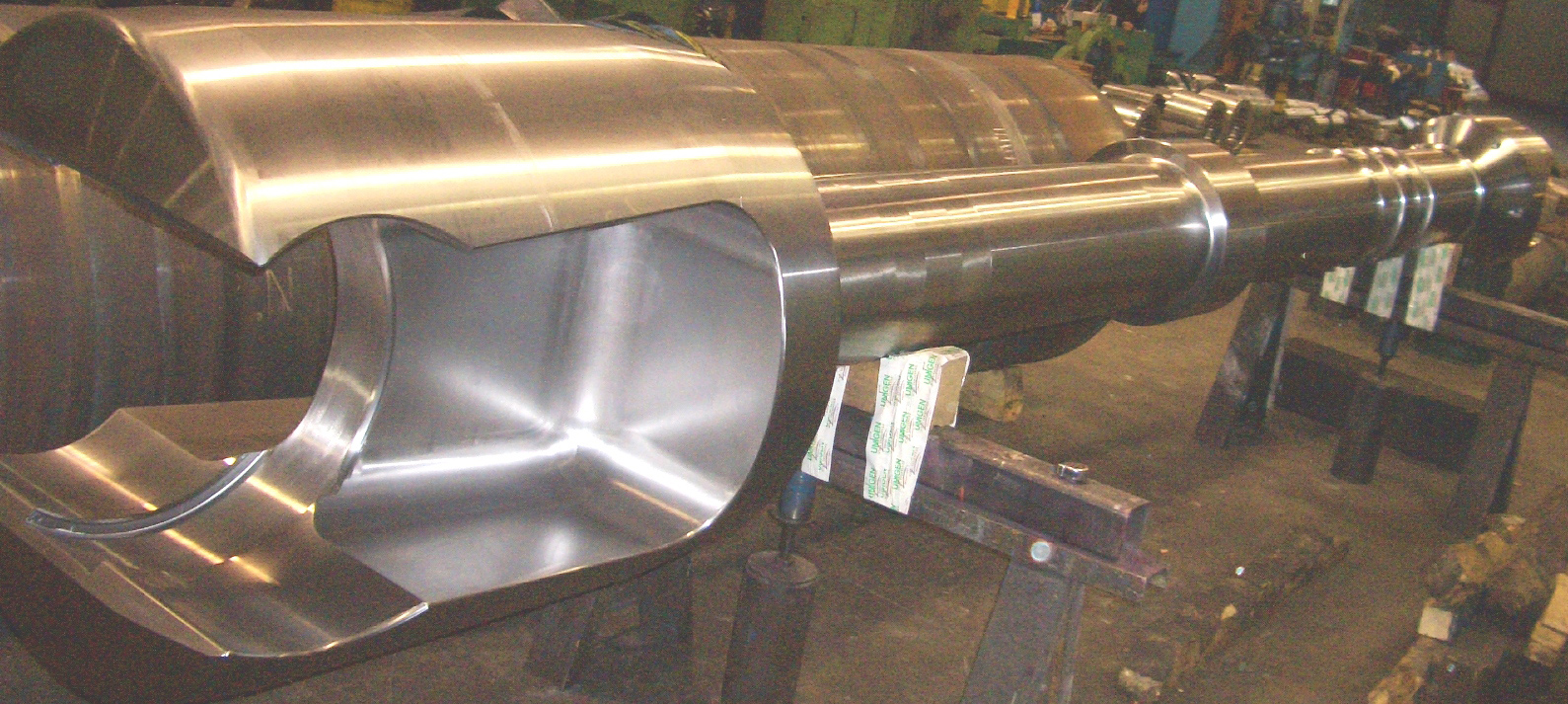

Spindle shaft with a fixed head.
Turned and milled complete on a solid workpiece.
Material: Forged steel.
Dimensions: Length 23', Body Dia. 22", Right head Dia. 40", Left head Dia. 20".
For a milling line in Luxembourg.
Spindle Shaft 3
Spindle Shaft 3
Spindle Shaft 3
Spindle Shaft 3

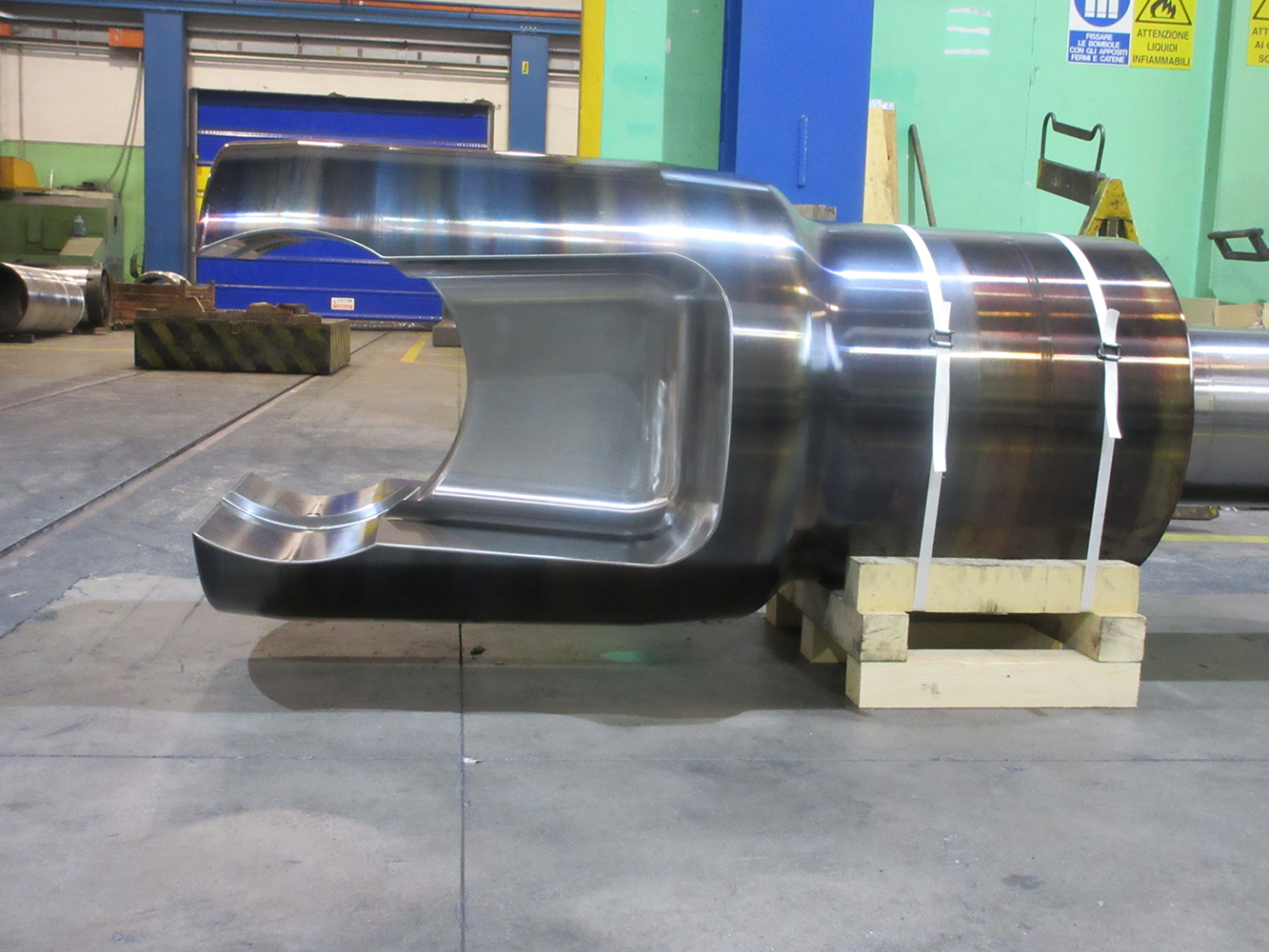

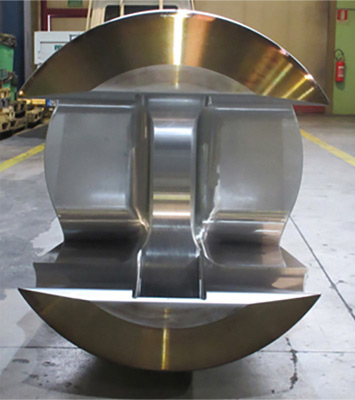

Spindle shaft with one fixed head and one assembled head. One head was hot assembled after the turning and milling operations.
Material: 33CRNIMO14.5.
Dimensions: Length 26', Dia. 4', Weight 16 Tons.
For a milling line in Luxembourg.

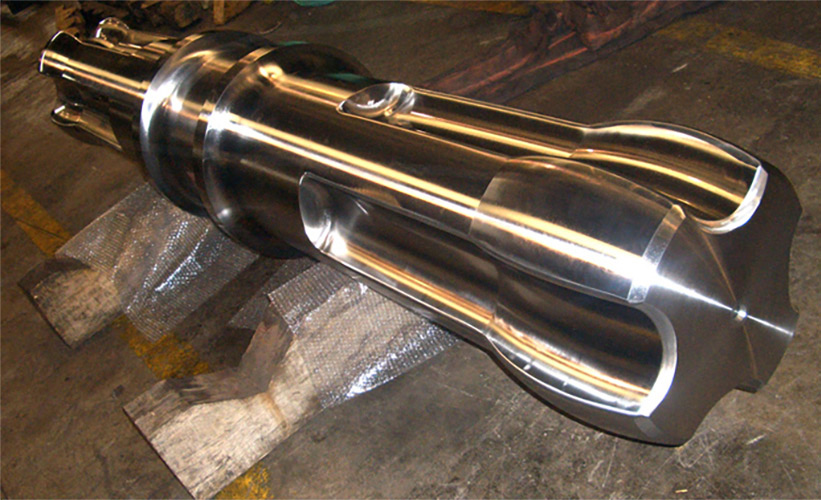

Universal Shaft
Universal Shaft
Universal Shaft

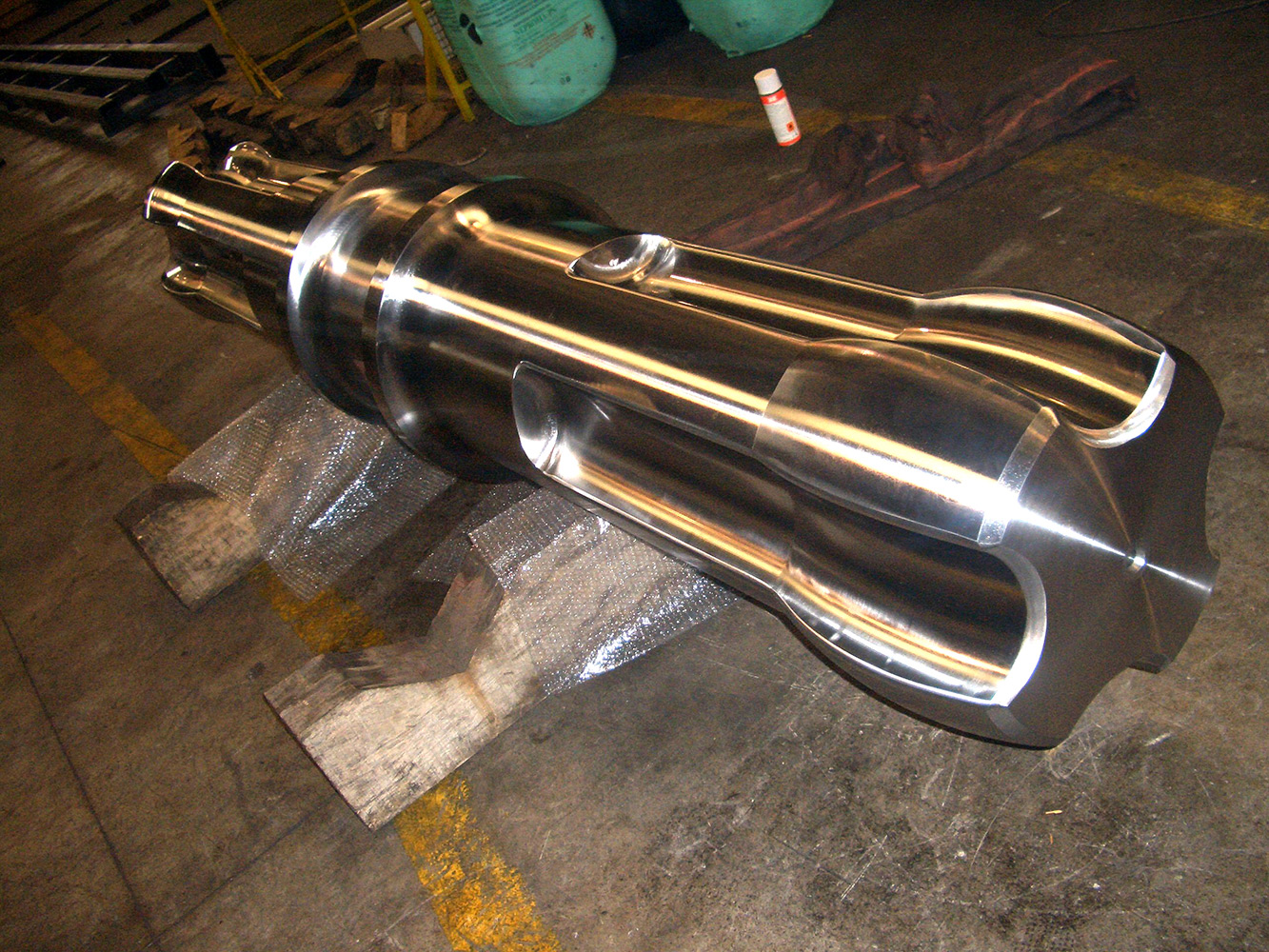

Universal shaft with longitudinal grooves for coupling.
Turned and milled complete on solid workpiece.
Material: Forged steel.
Dimensions: Length 11', Body Dia. 1 ½'.
For a milling line in Italy.
Sleeve Tip
Sleeve Tip
Sleeve Tip
Sleeve Tip
Sleeve tip to be hot assembled on spindle shaft.
Material: Forged steel.
Dimensions: Length 5', Diameters 3' and 4'.
For a milling line in Belgium.

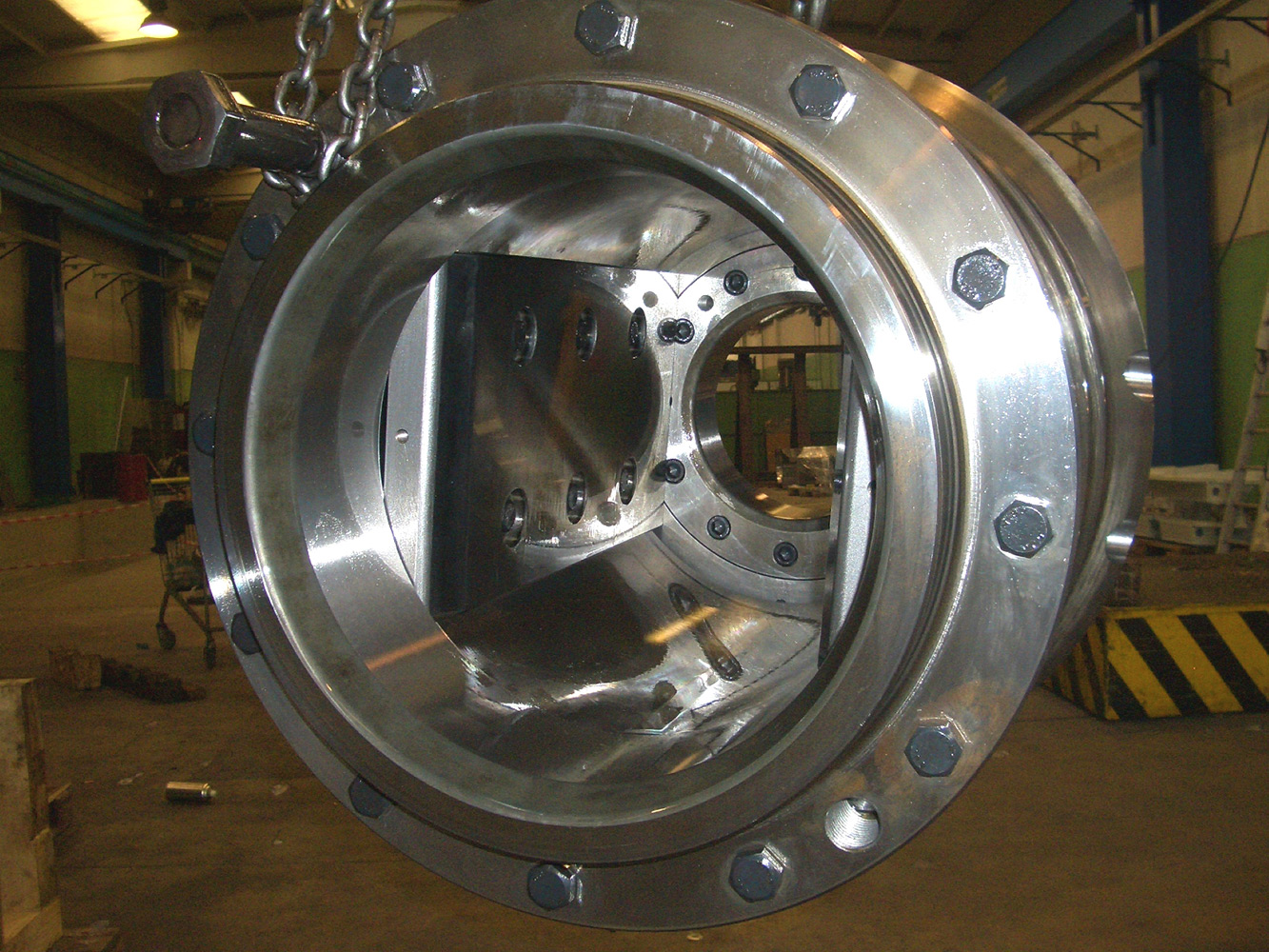

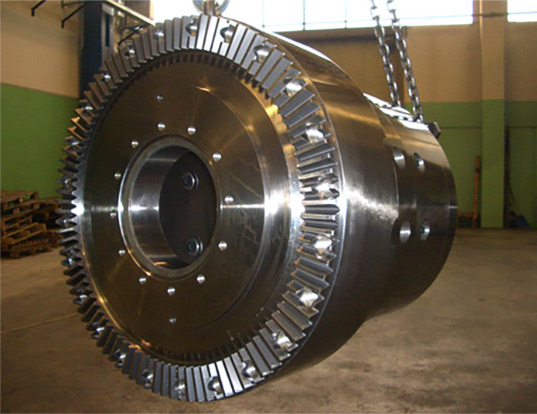

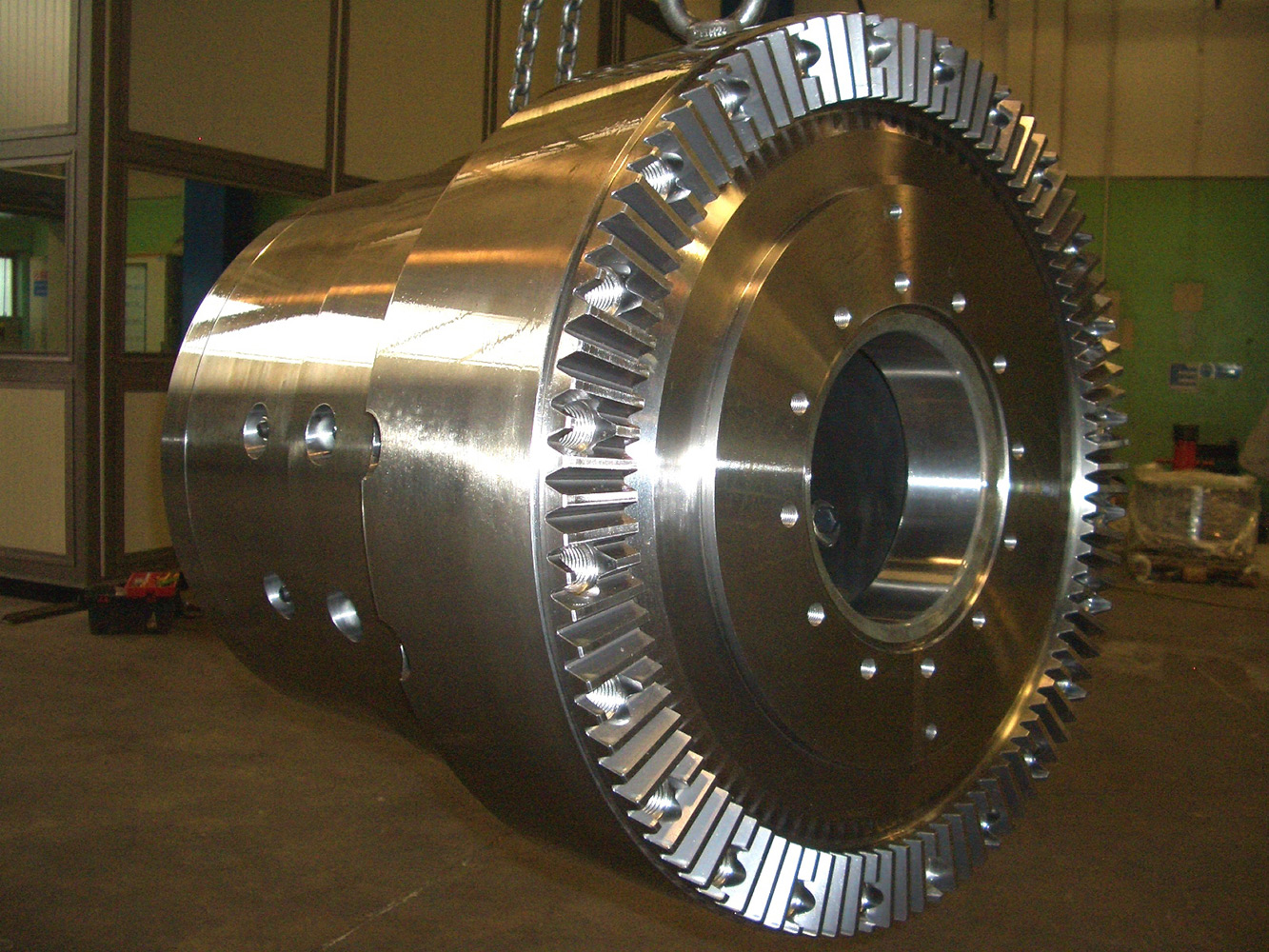

HIRTH Sleeve 1
HIRTH Sleeve 1
HIRTH Sleeve 1
HIRTH Sleeve 1

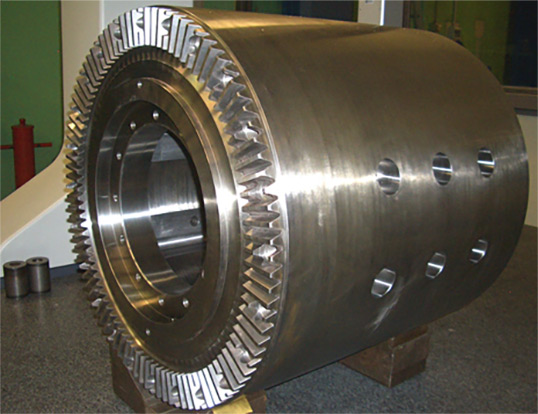

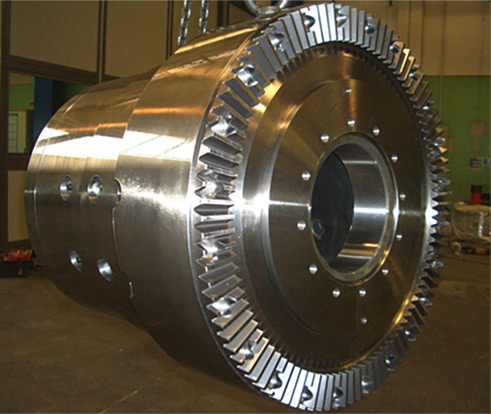

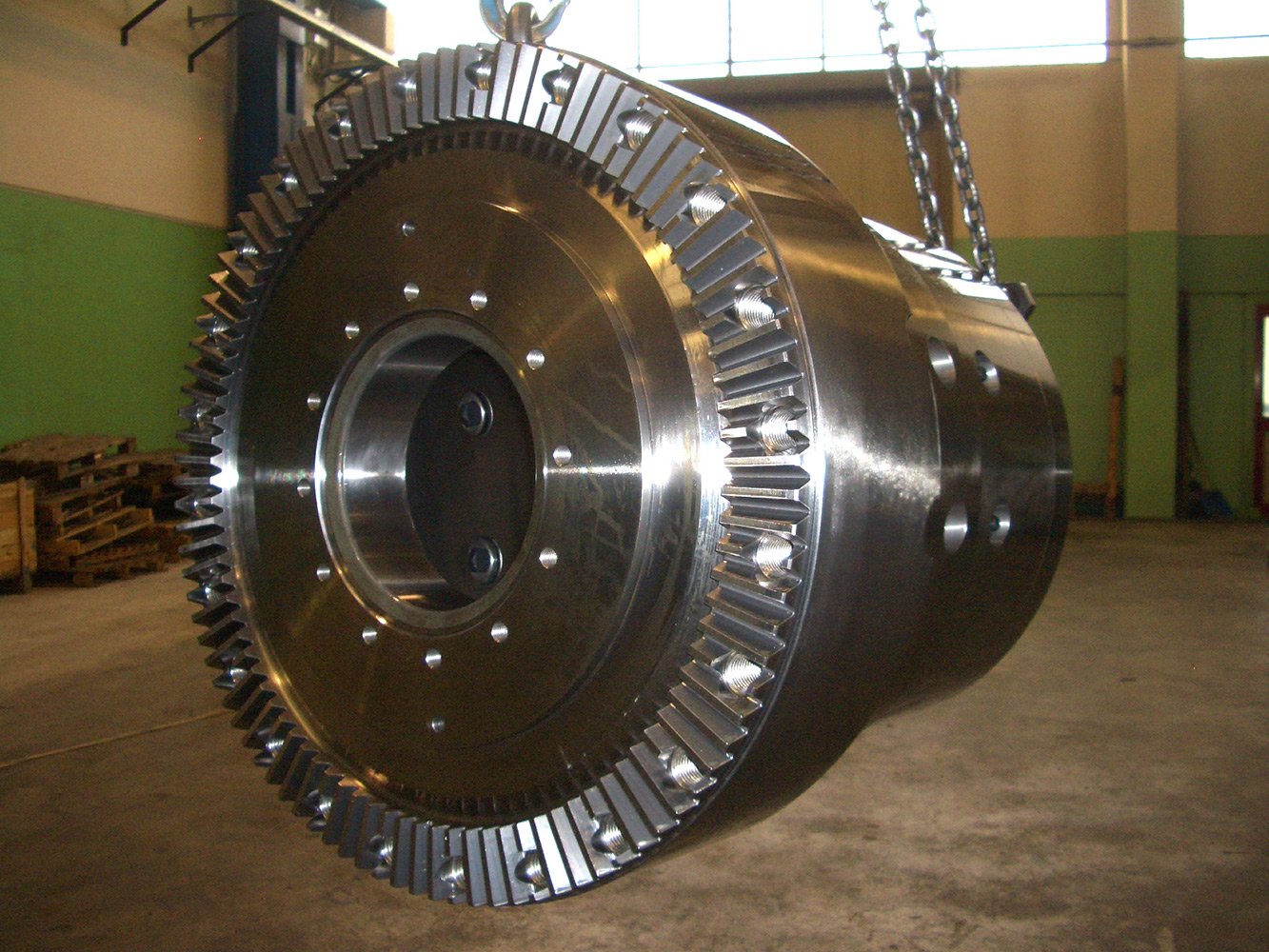

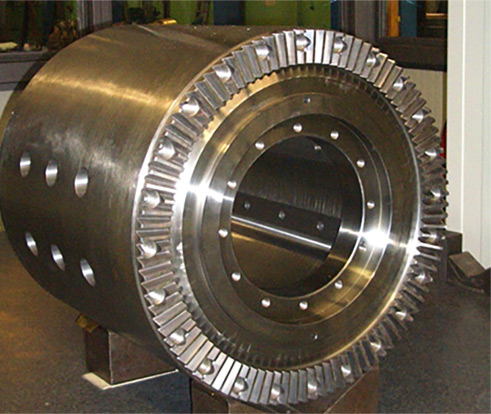

Articulated sleeve with HIRTH toothing and internal core to be assembled on a spindle shaft.
Material: Forged steel.
Dimensioni: Length 2 ½', Dia. 1'.
For a rolling mill line in Belgium.

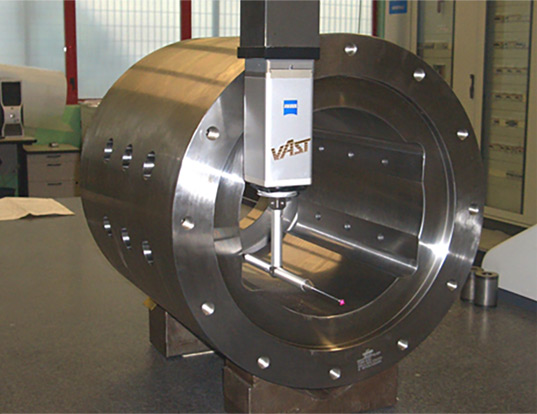

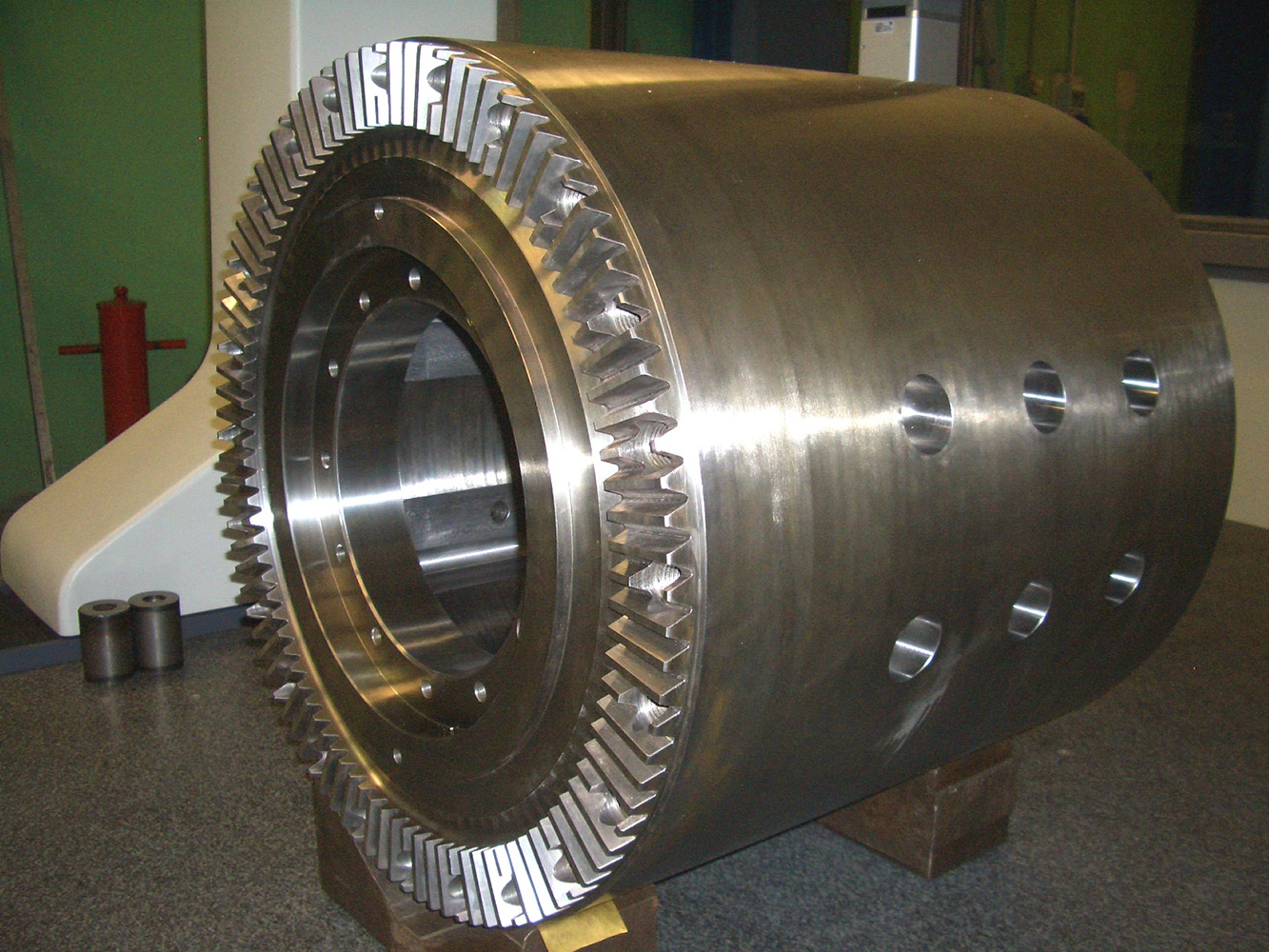

HIRTH Sleeve 2
HIRTH Sleeve 2
HIRTH Sleeve 2
HIRTH Sleeve 2

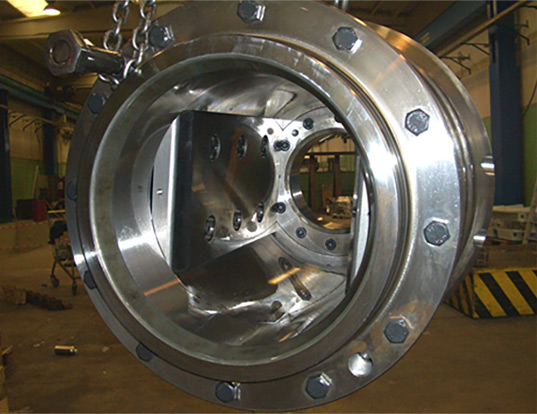

Articulated sleeve with HIRTH toothing and internal core to be assembled on a spindle shaft.
Turned, milled and bored with internal teeth.
Material: Forged steel.
Dimensions: Length 2', Dia. 2'.
For a rolling mill line in Belgium.

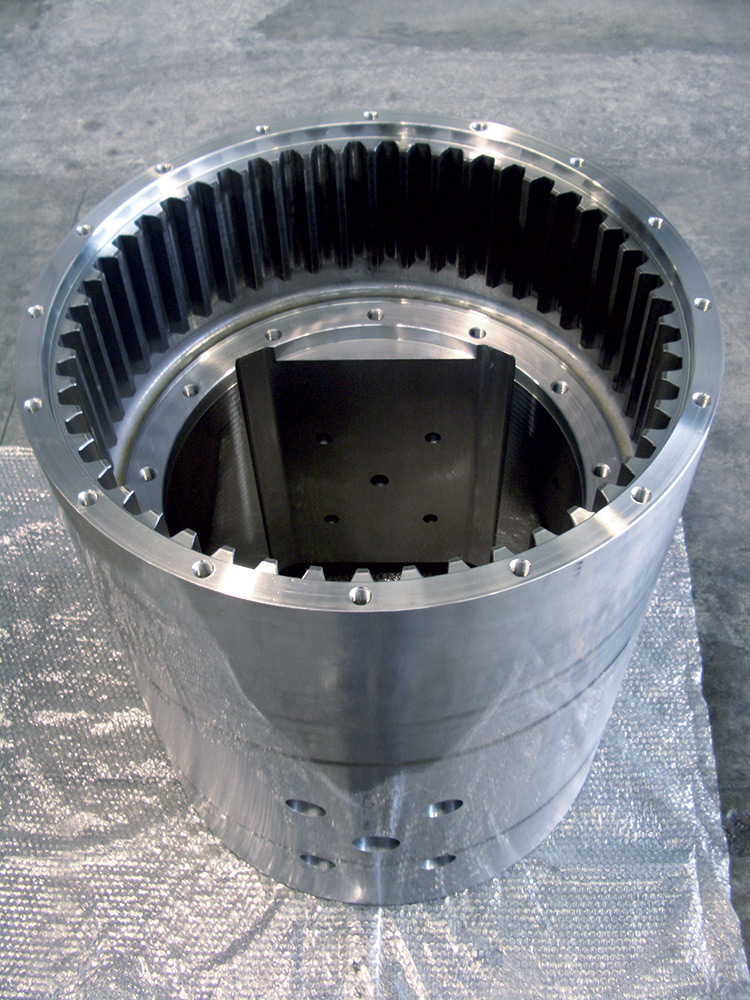

Sleeve with Internal Teeth 1
Sleeve with Internal Teeth 1

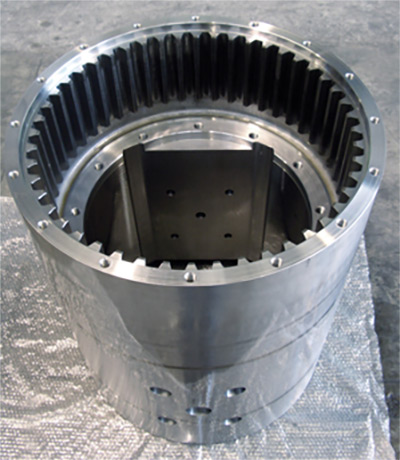

Coupling sleeve for spindle shaft.
Material: Forged steel.
Dimensions: Length 3', Dia. 2'.
For a rolling mill line in Luxembourg.
Sleeve with Internal Teeth 2
Sleeve with Internal Teeth 2
Coupling sleeve for extension.
Turned, milled and bored with internal teeth then assembled.
Material: Forged Steel.
Dimensions: Length 3', Dia. 3 ½'.
For a rolling mill line in Luxembourg.

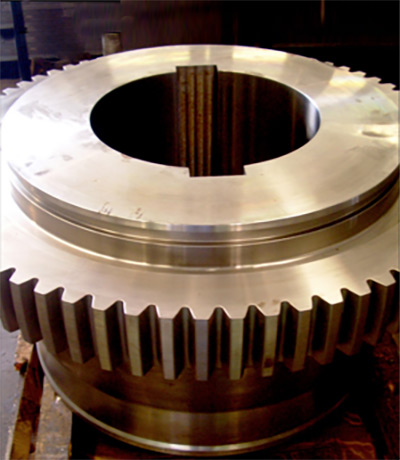

Coupling with Outer Teeth 1
Coupling with Outer Teeth 1

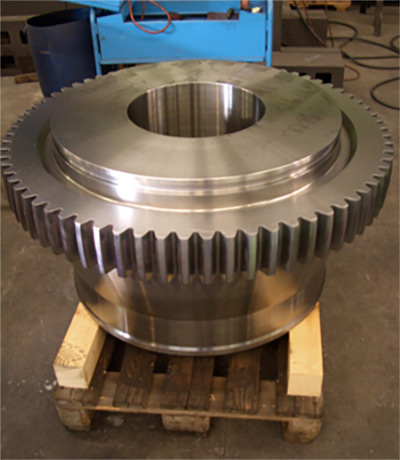

Coupling with rounded teeth.
Turned, bored, teeth cut and ground.
Material: Forged steel.
Dimensions: Height 2', Dia. 2 ½', teeth 4'.
For a rolling mill line in Belgium.

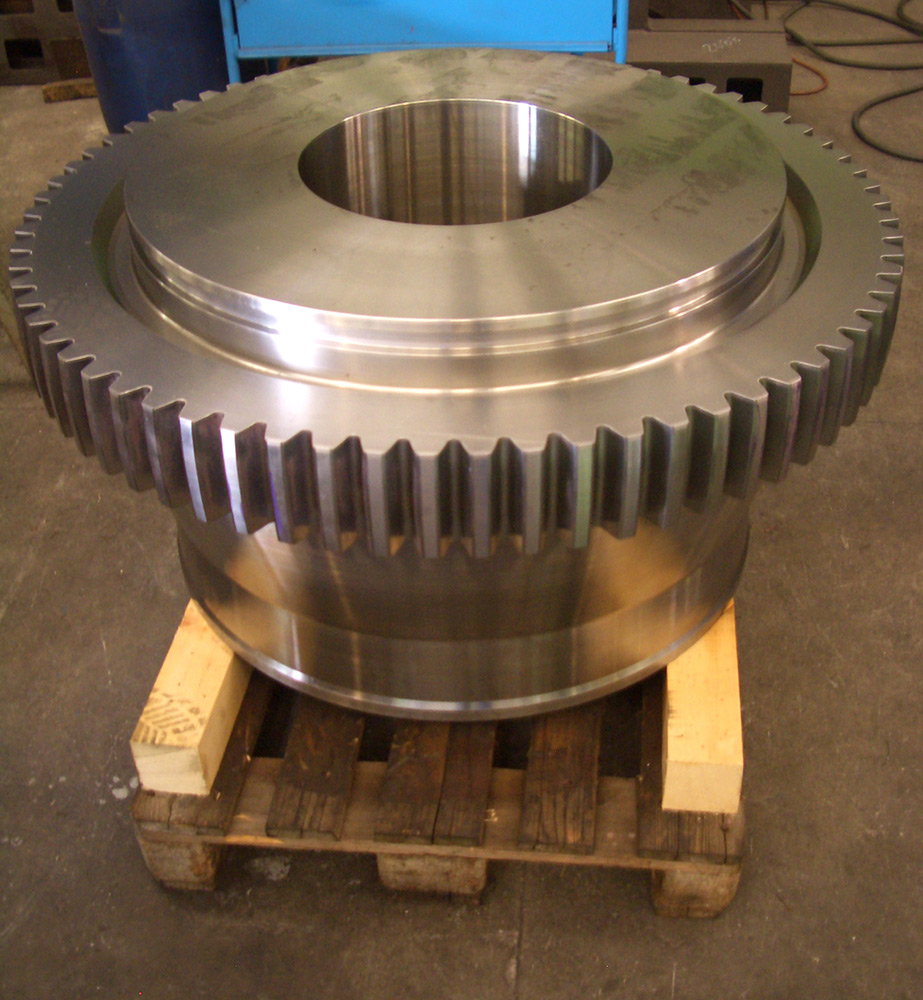

Coupling with Outer Teeth 2
Coupling with Outer Teeth 2
Coupling with rounded toothing and internal keyways.
Turned, bored, toothing, internal milling and ground.
Material: Forged steel.
Dimensions: Height 2', Dia. 2 ½', toothing 4'.
For a rolling mill line in Luxembourg.
