Segments

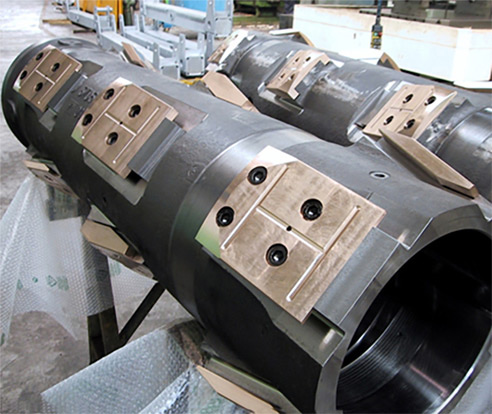

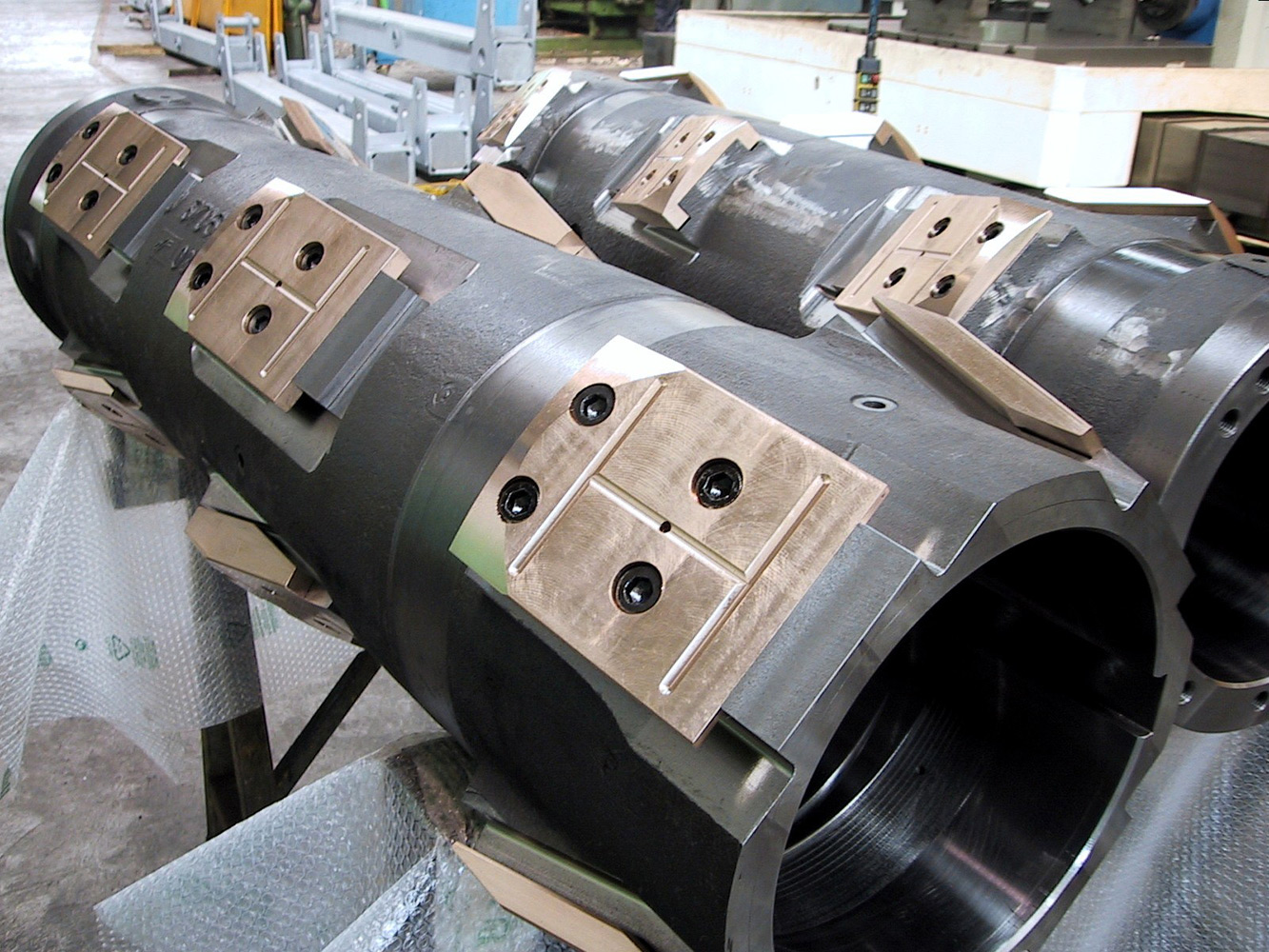

Segments Internal Body
Segments Internal Body
Segments Internal Body
Segments Internal Body

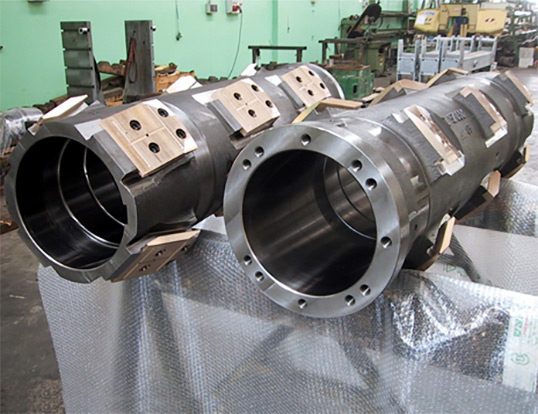

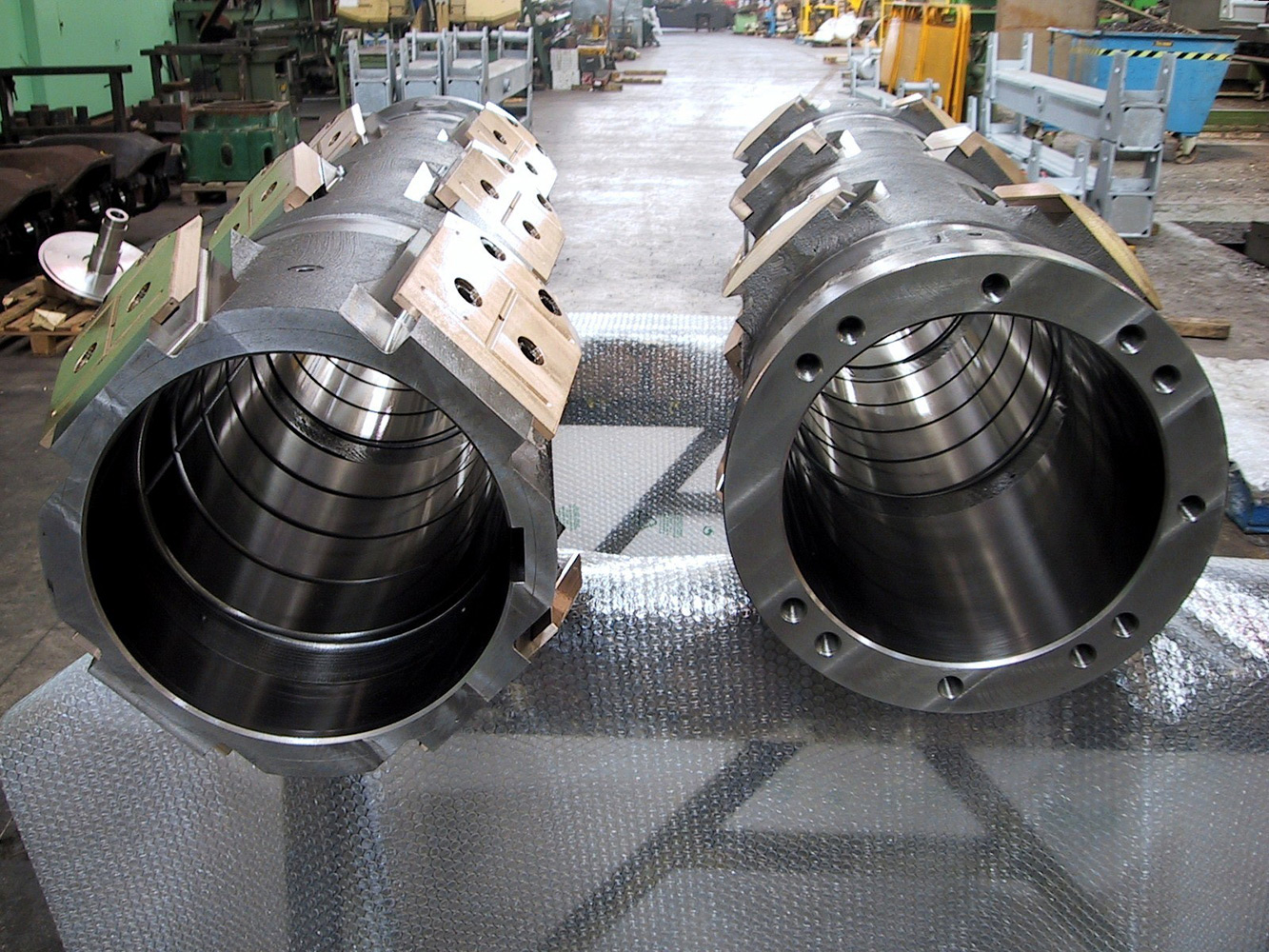

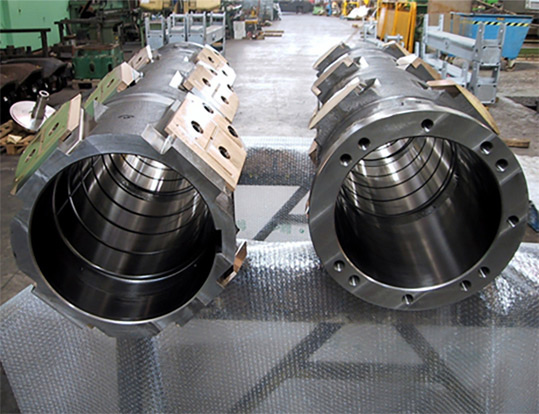

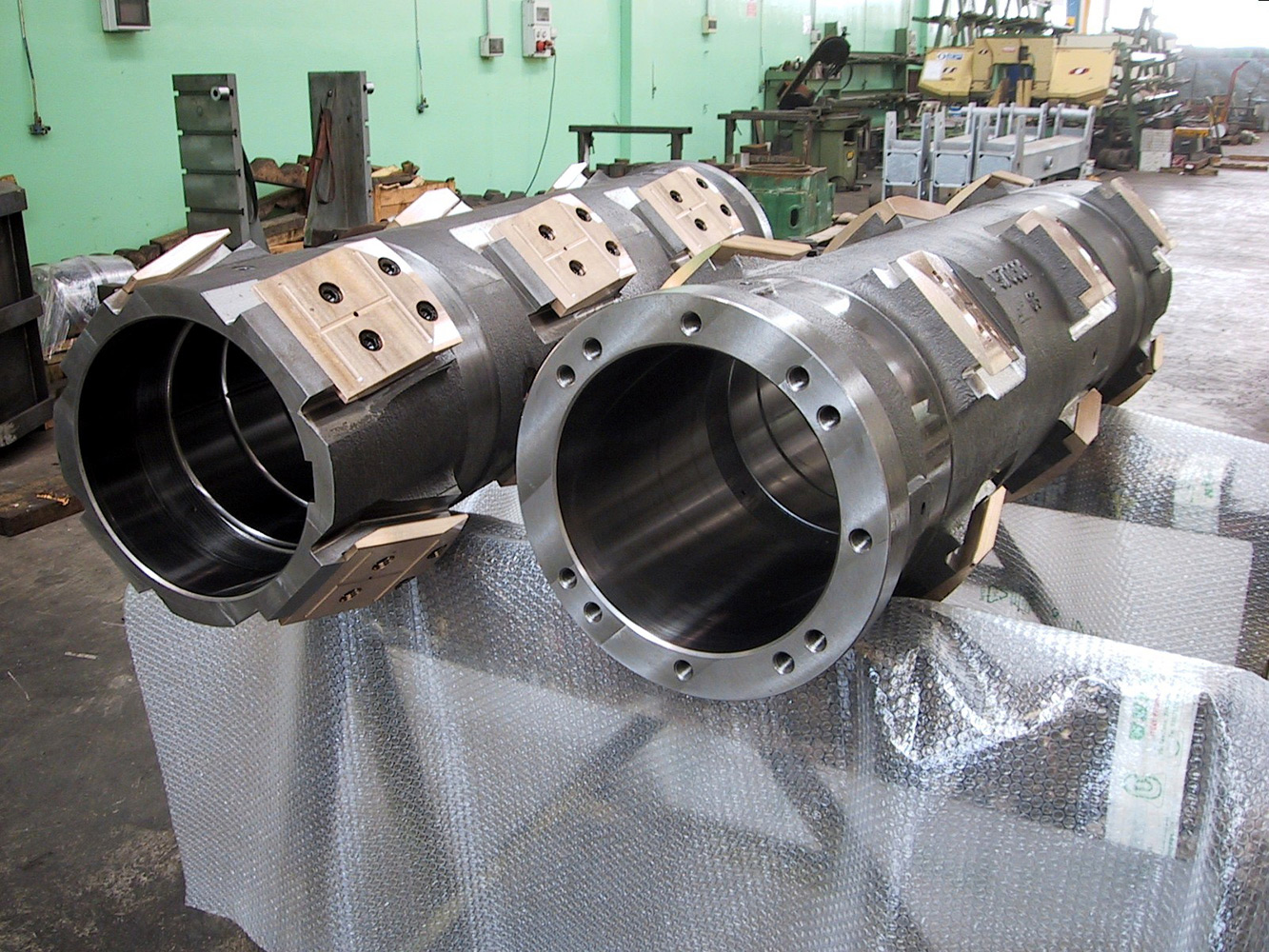

Segment internal body for coil expansion.
Turned, milled and assembly of roller bearings.
Body material: Spherical cast iron.
Roller bearing material: Bronze.
Dimensions: Length 6 ½', Dia. 1 ½'.
For a milling line in Finland.

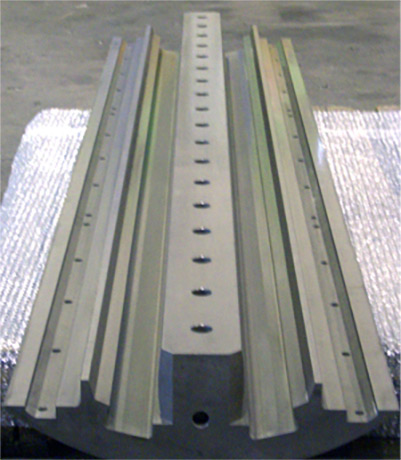

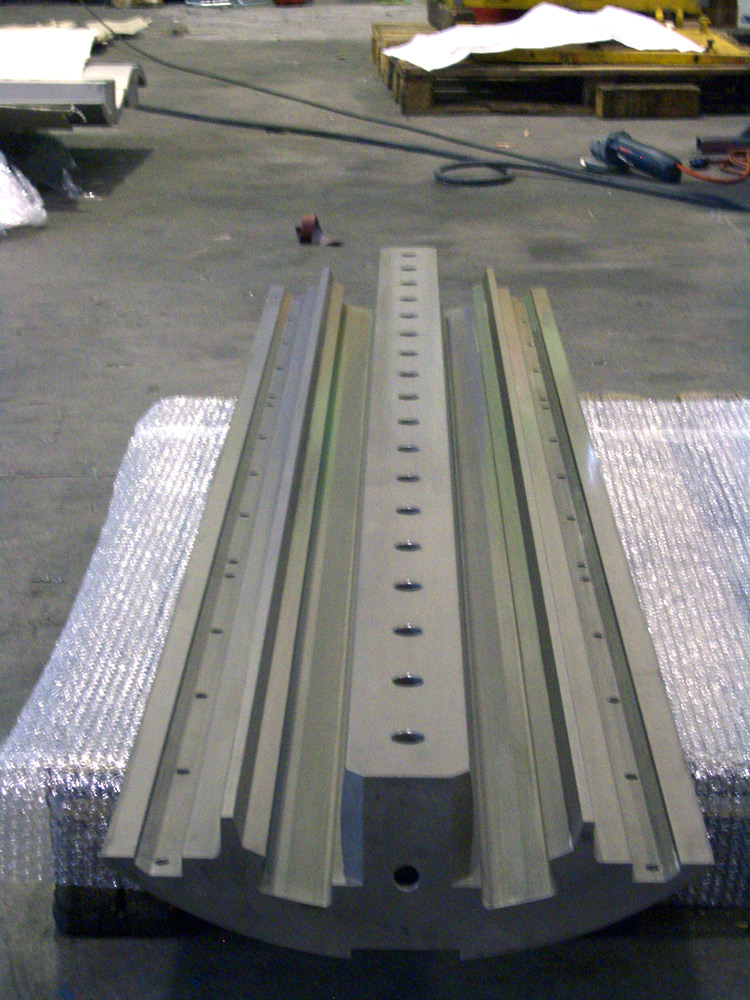

Segment 1
Segment 1
Segment for coiling/uncoiling of coil.
Turned, milled and drilled.
Material: Forged steel with nitride hardening process.
Dimensions: length 7'.
For a rolling mill line in Sweden.
Segment 2
Segment 2

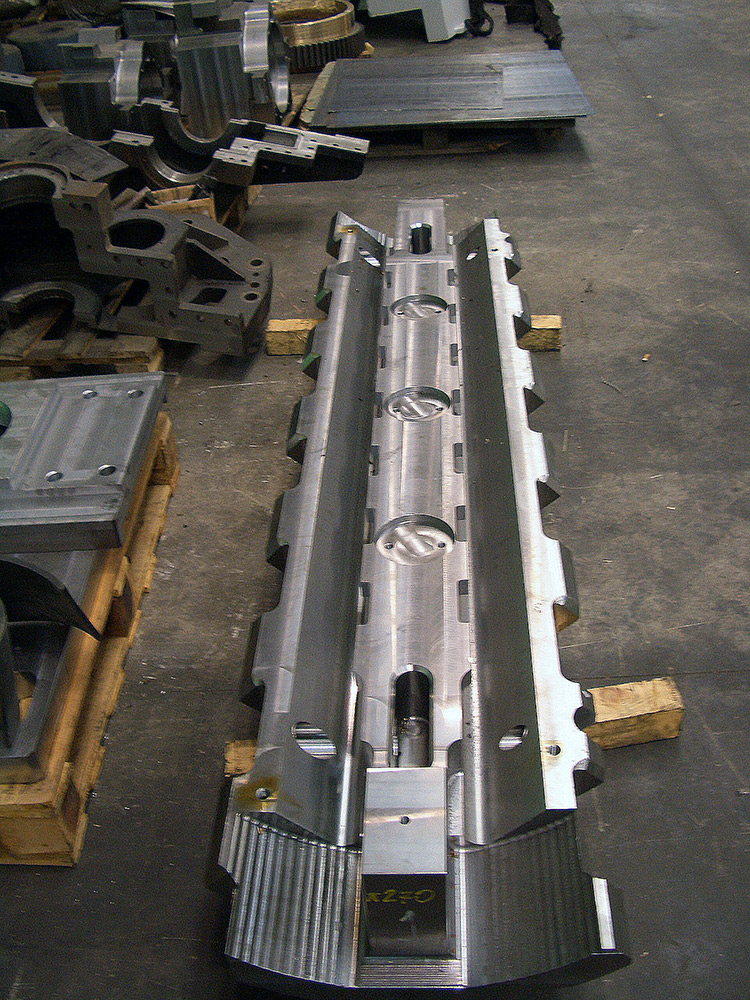

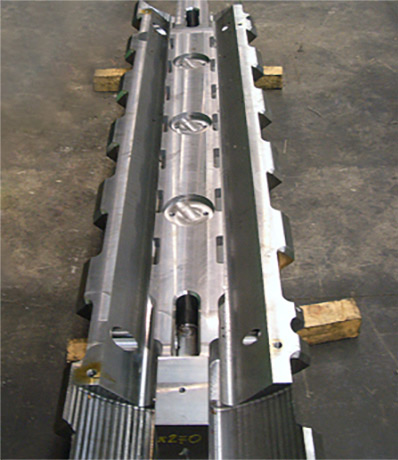

Segment for coiling/uncoiling of coil.
Turned, milled, drilled and bored.
Material: Quenched forged steel.
Dimensions: length 7'.
For a rolling mill line in Sweden.

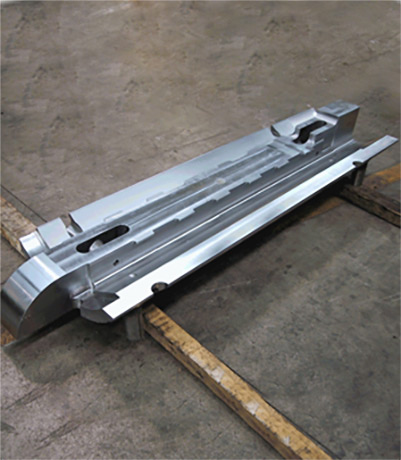

Segment 3
Segment 3

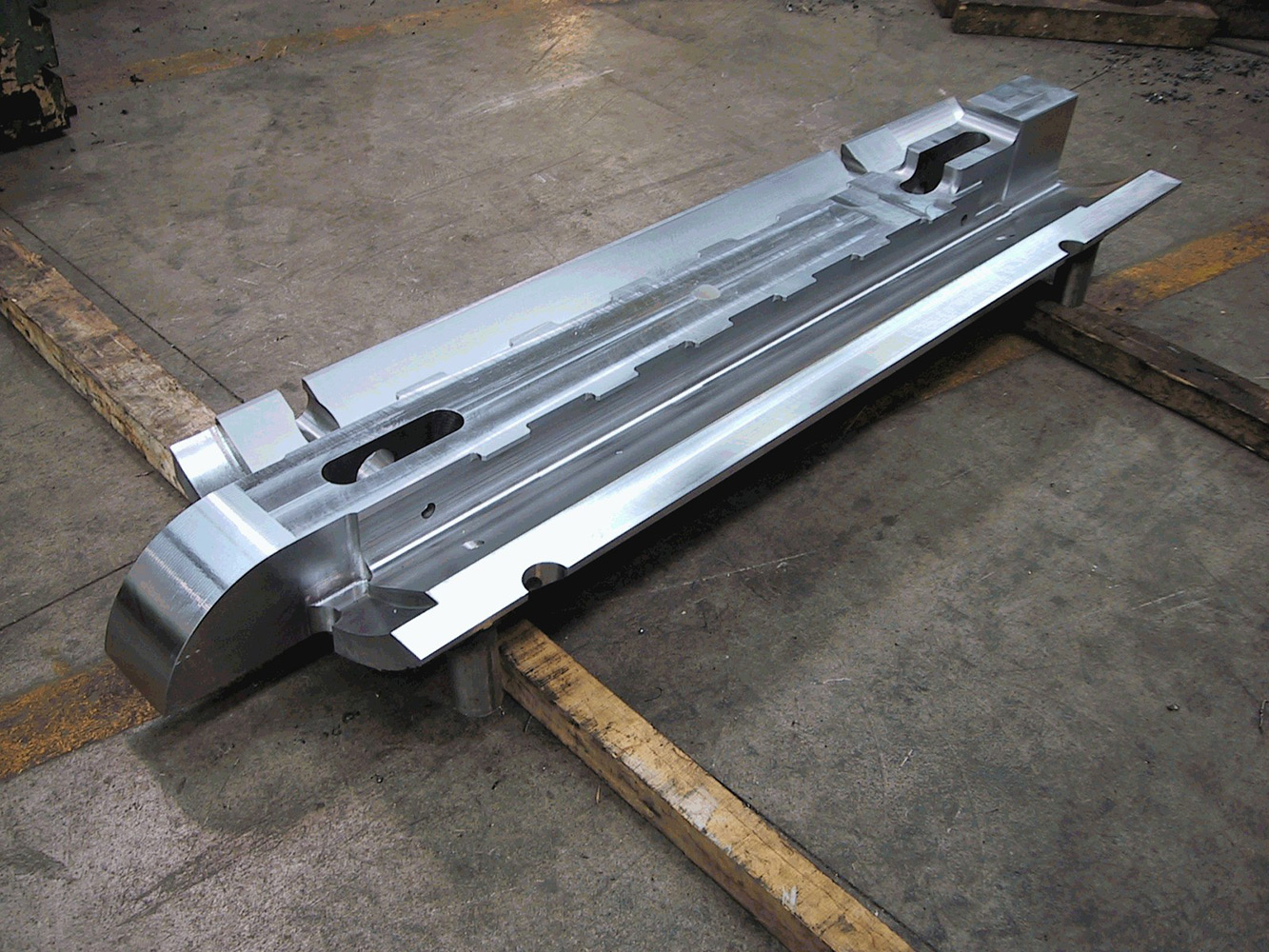

Segment for coiling/uncoiling of coil.
Turned, milled and bored.
Material: Quenched forged steel.
Dimensions: length 7'.
For a milling line in Finland.

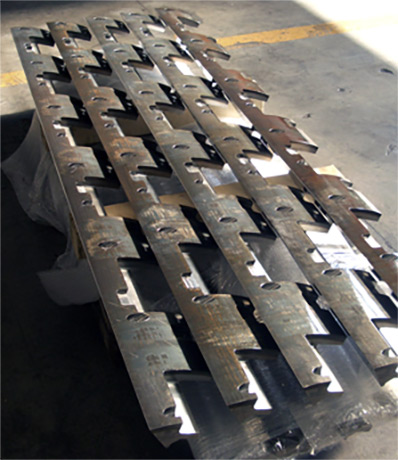

Segment 4
Segment 4

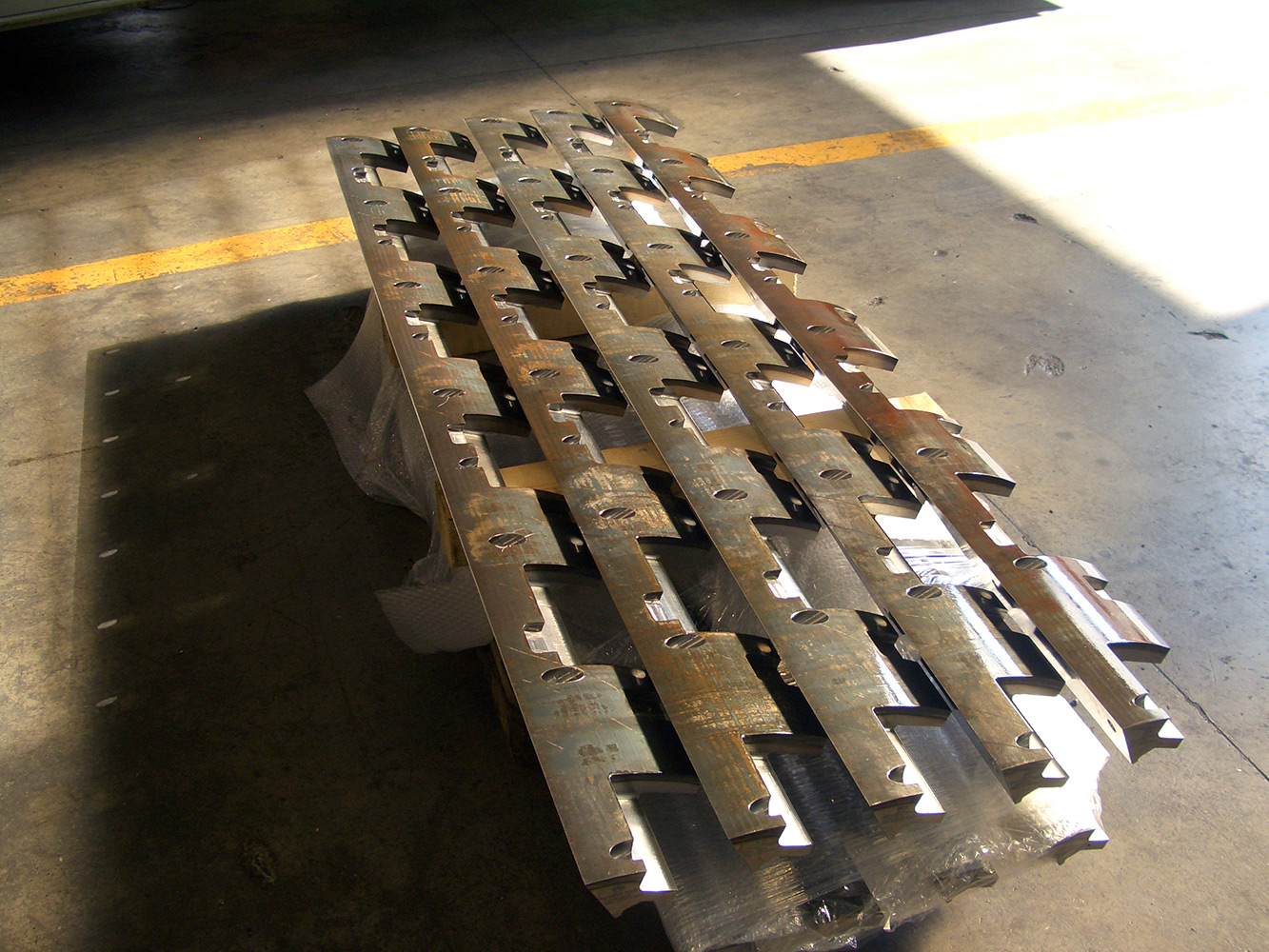

Hook segments for coil coiler.
Turned, milled, drilled and bored.
Material: Heat processed forged steel with induction hardening process.
Dimensions: length 7'.
For a rolling mill line in Finland.

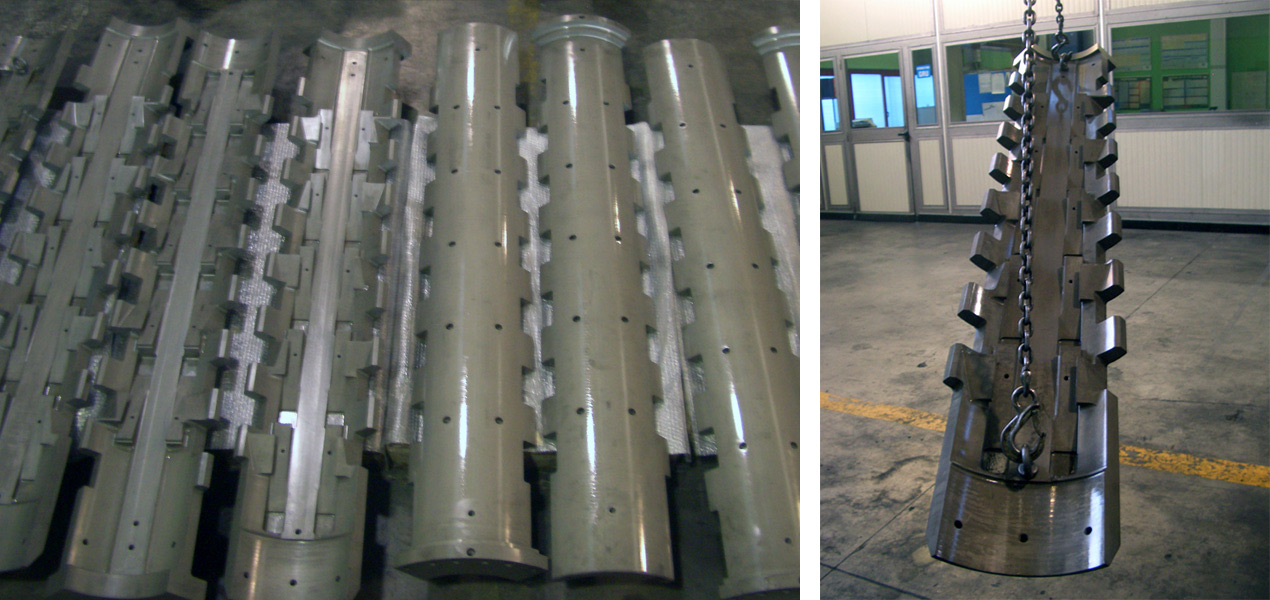

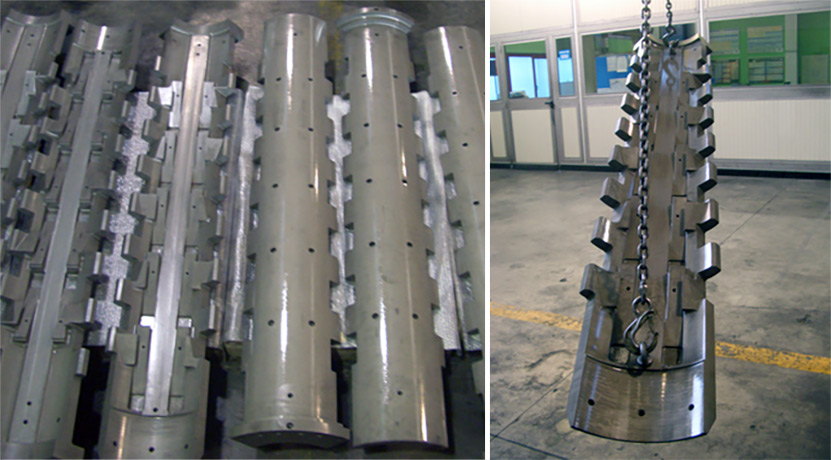

Segment 5
Segment 5
Segment for coiling/uncoiling of coil.
Turned, milled, drilled and bored.
Material: Forged steel with nitride hardening process.
Dimensions: length 8'.
For a rolling mill line in Belgium.
